Section Straightening Machine

Technical Specification

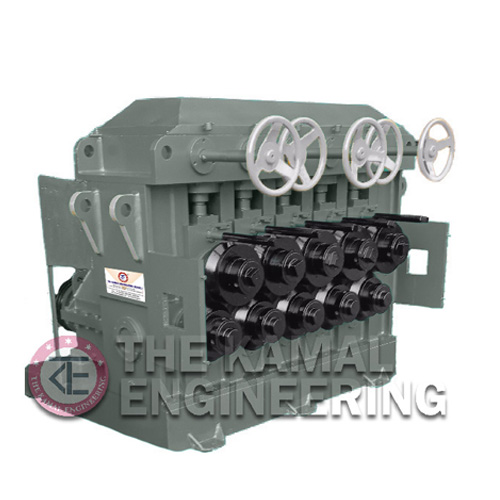

THE KAMAL ENGINEERINGRoller section straightening machine is most suitable for straightening of any rolled, drawn or extruded ferrous and non-ferrous in cold condition. This machine is engineered to give trouble-free long-life service. The body and base of are fabricated from mild and steel and steel plates duly stress relied and machined as per design.

All straightening rolls (tops and bottom) are mounted on cantilever type spindle. This arrangement is most suitable where quick change of rolls is required.

All spindlesare supported by heavy taper roller bearing to radial and axial load encountered in straightening. These machines are used in hot rolling mills, transmission line tower manufacturers, general fabricators and cold drawn hexagon, square and profile bars and hot extruded section.

We at “THE KAMAL ENGINEERING” provide Section Straightening Machine as per the following configuration.


MODELS

SSM-23

SSM-26

SSM-32

SSM-37

SSM-45

SSM-55

SSM-70

SSM-100

ANGLE & TEE

MINIMUM
MAXIMUM

30*30*3
50*50*6

40*40*5
75*75*6

45*45*5
100*100*10

50*50*5
110*110*10

50*50*5
130*130*12

100*100*10
150*150*20

100*100*10
200*200*25

150*150*12
250*250*35

CHANNEL & JOINTS

MINIMUM
MAXIMUM

All Doors & Windows
Section

30*12
75*40

50*30
100*50

60*30
150*75

65*35
200*75

150*75
400*100

250*80
500*180

250*80
600*210

FLAT

MINIMUM
MAXIMUM

20*4
50*40

20*5
60*15

32*6
70*20

30*8
75*25

30*10
100*40

-

-

-

HEX & SQUARE

MINIMUM
MAXIMUM

15
30

12
40

16
50

20
55

25
65

-

-

-

NO. OF ROLLS

10

10

8

8

8

8

8

8

ROLL CENTRE

230

260

320

370

400

550

700

1000

ROLL DÍA

200

245

290

340

360

450-500

550-600

650-850

BEARINGS
LUBRICATION

Ball & Roller
Oil & Grease

Ball & Roller
Oil & Grease

Ball & Roller
Oil & Grease

Ball & Roller
Oil & Grease

Ball & Roller
Oil & Grease

Ball & Roller
Oil & Grease

Roller
Oil & Grease

Roller
Oil & Grease

SPEED METRES/MIN.

35

30

25

20

15

15-20

15-20

12-15

MOTOR H.P.

10

20

30

40

75

100

200

250

SHAFT EXTENSION D/I

70/140

90/200

110/300

120/300

140/350

180/400

240/500

300/700

WEIGHT IN KGS. APPROX.

3000

5000

8000

9000

13000

22000

38000

67000
